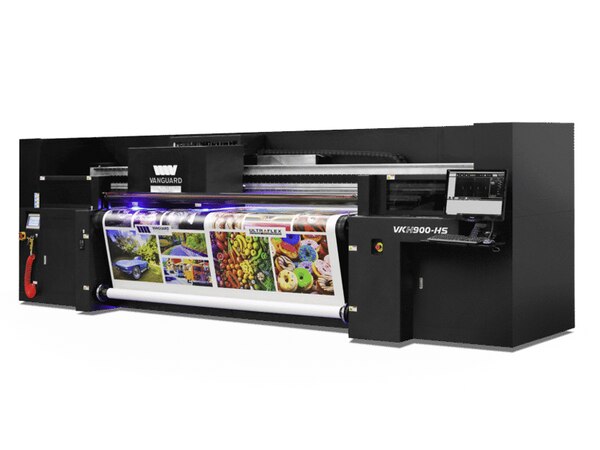

VKH900-HS | 98" HYBRID UV FLATBED PRINTER

SPECIFICATIONS:

  • PRINT HEAD: Kyocera KJ4A
  • RESOLUTION: Up to 1800dpi (apparent) as small as 4pl
  • MAX PRINT HEAD CONFIG: 15 ( 3 rows of 5 heads)
  • MAX. PRINT WIDTH: 98"
  • MAX. MEDIA THICKNESS: 2.5" FLAT
  • MAX. MEDIA ROLL WEIGHT: 330lbs.
  • BASE INK CONFIG.: CMYK
  • INK OPTIONS: WHITE + VARNISH
  • INK CURING: Liquid-Cooled LED System


DIMENSIONS:

  • FOOTPRINT: 17" W x 5' D x 5'8" H
  • WEIGHT: 6,820lbs.
  • RECOMMENDED OPERATIONAL FLOOR SPACE: 20' W x 12'6" D
  • SHIPPING DIMENSIONS: 18" W x 10'5" D x 6'2" H
  • MIN. DOOR CLEARANCE: 72"

HYBRID UV LED PRINTER

The versatile VKH900-HS Hybrid UV LED combines our award winning VK300D-HS flatbed printer with the capabilities of our VKR3200-HS roll to roll printer. Maximizing the key features of each platform, we achieved astonishing speed and clarity, utilizing Kyocera’s KJ4A print head, on either rigid or roll materials.


The VKH900-HS is a field expandable platform allowing up to 15 Kyocera KJ4A print head, in a 3 row configuration (3 each CMYKW). With a versatile print zone of 2.5m (98”) the VKH900-HS is designed to accommodate industry standard rolls up to 98” wide and flat media up to 2.5” thick and 10 lbs/sq ft. As with all Vanguard printers this hybrid continues to utilize fully adjustable liquid-cooled UV LED lamps which will allow for printing on heat sensitive materials faster than competitive technologies.



PRINT SPEEDS: (3 Row Configuration)

  • EXPRESS (2 PASS): Up to 2975 sq. ft/h
  • PRODUCTION (4 PASS): Up to 2016 sq. ft/h
  • QUALITY (8 PASS) : Up to 1250 sq. ft/h
  • HIGH QUALITY (10 PASS): Up to 833 sq. ft/h

(*above speeds using CMYK ink config.)

SKU: VG-VKH900-HS SERIES
