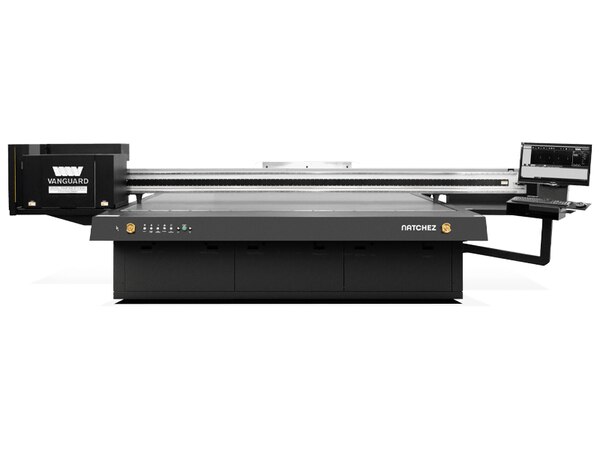

VG-NATCHEZ | 5'X10' HS FB PRINTER HIGH VACUUM
5'x10' UV Flatbed with Enhanced Vacuum Power
Natchez is the latest flatbed solution from Vanguard Digital Printing Systems, and embodies the spirit of growth and innovation reflected in the Productivity Redefined line. This powerhouse UV-LED flatbed printer delivers the speed, precision and performance that print service providers need, in the most thoughtful and deliberately designed way they want.
With advanced features like an enhanced vacuum table with 127,000 1/8th-inch holes, turbo 5-horsepower blower motor, dual-zone vacuum system for simultaneous setup and printing, magnetic linear drive control for precise drop placement for sharper lines and text, optional White + Varnish ink channels, and an eco-friendly LED curing system.
Natchez offers stunning image quality, consistent output, and reduced risk of head strikes or substrate warping.
GENERAL SPECIFICATION
Print Head: Kyocera KJ4A
Print Resolution: Up to 1800 dpi
Base Ink: CMYK
Optional Ink: White + Varnish
Curing: Liquid-Cooled LED
Max Print Heads: 10 (5 x 2 rows)
Max Print Size: 61.3” x 125.5” (155 cm x 318 cm)
Max Thickness: Up to 4” (10 cm)
Max Media Weight: 500 lbs. (226 kg)
Material Type: Rigid & Flexible
RIP Solutions: Durst Workflow | Onyx | Caldera
DIMENSIONS
W x D x H: 18’7” x 8’9” x 5’
Weight: 3,427 lbs. (1,554 kg)
Recommended Operating Dimensions: 22’7” x 12’9” x 5’
Shipping Dimensions: 19’3” x 10’4” x 6’2”
Minimum Door Clearance: 72” (183 cm)
