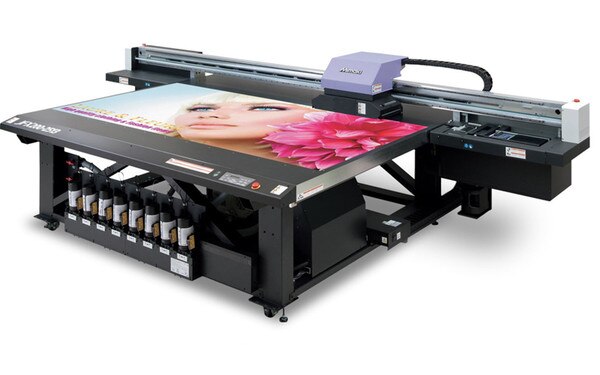

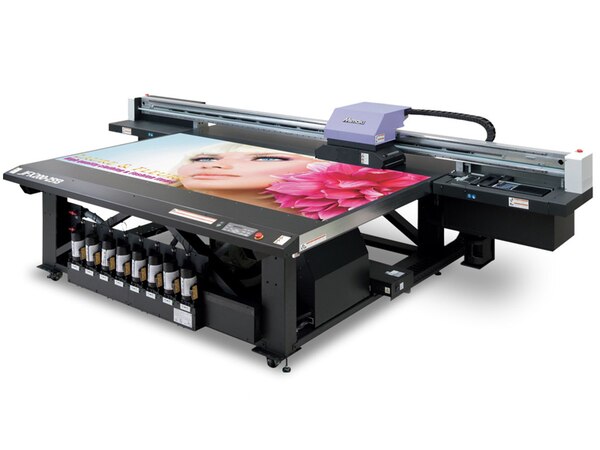

MK- JFX200-2513EX | 4' x 8' LED UV FLATBED PRINTER

Expanded Capabilities... Affordable Price

Built upon the proven technology of Mimaki’s industry-leading fl atbed printer, the JFX200-2513 EX offers expanded capabilities with greater productivity and functionality. New features include a draft mode that enables a maximum print speed of up to 12 boards per hour and three staggered printheads that allow for continuous printing without sacrifi cing speed. Create a range of applications such as installation-ready rigid signage, wayfi nding, decorative panels, custom pieces, printing jigs and more.

Specifications:

  • Printhead On-demand piezo (3 printheads / staggered config.)
  • Print resolution 300 dpi, 450 dpi, 600 dpi, 900 dpi, 1,200 dpi
  • Print speed up to 376 SqFt (35 SqM) / Hr in draft mode
  • Absolute accuracy* +/- 0.01 in (0.3 mm) or +/- 0.3%
  • Repeatability* +/- 0.008 in (0.2 mm) or +/- 0.1%
  • (*from specified print distance)
  • Maximum print area 98.4 in W x 51.1 in L
  • Maximum thickness 1.96 in (50 mm)
  • Maximum media weight 110.2 lb / SqFt (250kg / SqM)


  • Interface USB 2.0, Ethernet
  • Power supply AC 200-240V, 50/60 Hz
  • Dimensions (W × D × H) 173.2 x 96.4 x 49.2 in
  • Weight 1433 lbs (650 kg)
SKU: MK-JFX200-2513EX

Call for Availability (714) 557-4500
