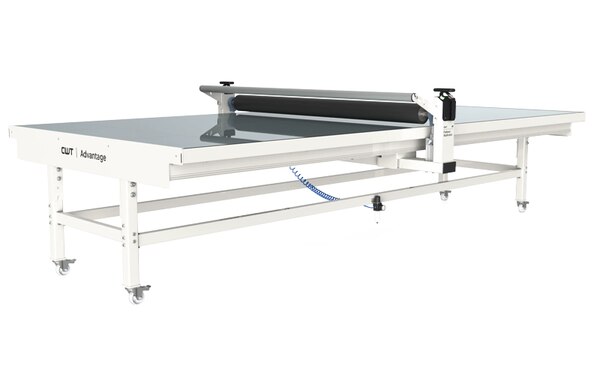

CWT 1736 ADVANTAGE | Flatbed Applicator Table
Working Area: 11'1" x 5'5" | Up to 2.8" Thick
The CWT Advantage Series is our compact flatbed applicator for sign shops, franchises and road sign manufacturers working in limited space or taking their first step into flatbed production. It delivers the core functionality needed for everyday sign making and regulatory road sign production, even in narrow or space-restricted environments. Despite its small footprint, the Advantage Series offers dependable results, selectable pre-set working height, optional LED light and flat-packed delivery – giving growing businesses professional access to reliable flatbed technology at an accessible budget level. Tomorrow’s production, made simple.

Facts:
Part NO: CWT 173610
Table Length: 3640mm (11ft. 3in.)
Table Width: 1720mm (5ft. 8in.)
Length of Working Area: 3368mm (11ft. 1in.)
Width of Working Area/Roller: 1650mm (5ft. 5in.)
Overall Width: 2080mm (6ft. 10in.)
Max Thickness of Substrate: 0-70mm (0-2.8in.)
Work Height: 820 - 920mm (2ft. 8in. - 3ft.)
Work Height Adjustment: Manual
Bed Surface: Safety glass + Cutting mat
Power Supply: 120V/60Hz (15A)
Required Air Supply: 6-8bar (87-116psi)
Net Weight: 400kg (881 lbs)
Gross Weight: 500kg (1102 lbs)
Packing Dimensions: 3775 x 370 x 1950mm (12ft. 5in. x 1ft. 3in. x 6ft. 5in.)
Warranty: 3-years
