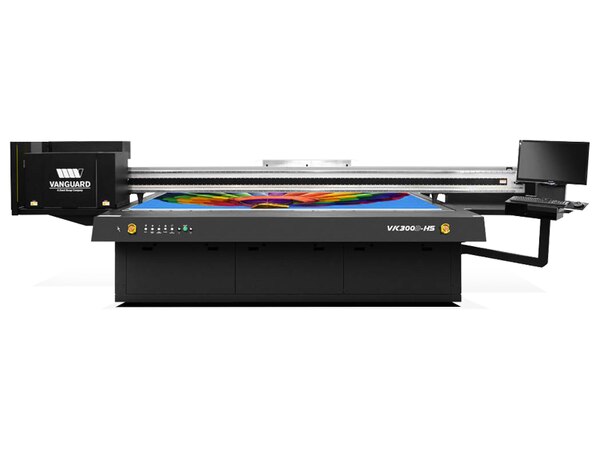

VK300D-HS | 5'x10' HS LED UV FLATBED PRINTER

SPECIFICATIONS:

  • PRINT HEAD: Kyocera KJ4A
  • RESOLUTION: Up to 1800dpi (apparent) as small as 4pl
  • MAX PRINT HEAD CONFIG: 10 ( 2 rows of 5 heads)
  • MAX. PRINT SIZE: 61.3" x 125.5"
  • MAX. MEDIA THICKNESS: 4"
  • MAX. MEDIA WEIGHT: 500lbs.
  • BASE INK CONFIG.: CMYK
  • INK OPTIONS: WHITE + VARNISH
  • INK CURING: Liquid-Cooled LED System


DIMENSIONS:

  • FOOTPRINT: 18"6" W x 8'5" D x 5' H
  • WEIGHT: 3,501lbs.
  • RECOMMENDED OPERATIONAL FLOOR SPACE: 22' W x 12'6" D
  • SHIPPING DIMENSIONS: 19'4" W x 7'5" D x 6'2" H
  • MIN. DOOR CLEARANCE: 84"


HIGH PRODUCTION FLATBED LED UV PRINTER

Built on the 6-time award winning VK300D series, the 5’ x 10’ VK300D-HS UV-LED true flatbed is the best 5’ x 10’ digital flatbed printer, period! This fully featured printer revolutionizes the industry with a high-speed electromagnetic drive system that propels the carriage at speeds up to 1.8m per second for an incredible 60 boards per hour. This impressive advancement ensures your business will out produce any competitor.


The VK300D-HS comes equipped with industrial Kyocera KJ4A printheads that deliver print dots as small as 4pl ensuring tight dot placement for vivid output on virtually any substrate up to 4” thick. Other features include auto height detection, one-touch pin registration, front-to-back and back-to-front printing, water-cooled LED curing technology, ionization bars, 6 reversible vacuum zones and supports CMYK, W & V. The VK300D-HS is engineered to grow with your business and is field expandable up to 10 printheads via 2 rows of printheads.



PRINT SPEEDS: (Single vs. Dual row of heads)

  • EXPRESS (2 PASS): Up to 2047 sq. ft/h | Up to 3412 sq. ft/h
  • PRODUCTION (4 PASS): Up to 1500 sq. ft/h | Up to 2421 sq. ft/h
  • QUALITY (8 PASS) : Up to 600 sq. ft/h | Up to 1054 sq. ft/h
  • HIGH QUALITY ( 10 PASS): Up to 400 sq. ft/h | Up to 516 sq. ft/h

(*above speeds using CMYK ink config.)

SKU: VG-VK300DHS SERIES
