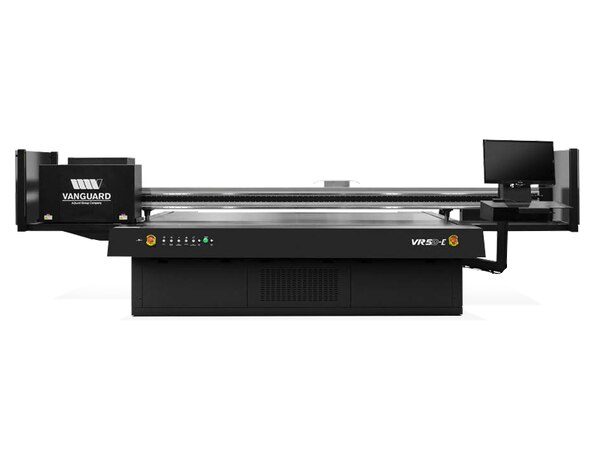

VR5D-E | 4'x8' LED UV FLATBED PRINTER
Entry Level 4' x 8' Flatbed UV-LED Printer
Our VR5D-E is the most feature rich, entry level 4’ x 8’ true UV-LED fixed table on the market. Utilizing industry-proven, Ricoh Gen5 print heads, you can expect both quality and speed, up to 12 boards an hour, at an affordable starting price. Expandable up to 10 print heads offering a CMYK configuration with optional White and Varnish. The printer that grows with your business.
Machine Dimensions & weight:
Crated Dimensions W X D X H: 16.5' x 7.5' x 11.5'
Crated Weight: 3,729 lbs.
Uncrated Dimensions W X D X H: 15' 4" x 6' 7" x 4' 9"
Uncrated Weight: 3,165 lbs.
Operating Dimensions: 20' x 10'
Minimum Door Clearance: 72" wide
Print Speeds:
SINGLE ROW:
- Production Mode: Up to 377 sq ft / h
- Quality Mode: Up to 188 sq ft / h
- High Quality Mode: Up to 140 sq ft / h
DUAL ROW:
- Production Mode: Up to 535 sq ft / h
- Quality Mode: Up to 476 sq ft / h
- High Quality Mode: Up to 320 sq ft / h
Combine Revolutionary Technology with Industry Leading Quality & Speed!
This printer offers field upgradability, with up to 10 print heads in 2 rows (2x5), for increased production. While pricing is entry level, the VR5D-E is an Industrial printer engineered for worry-free maintenance and ease of operation. High production workflow operating cost is at your fingertips!
The VR5D-E supports CMYK + W + V printing utilizing 7 pL dot sizes for vivid color output on substrates up to 4” thick. Other features include auto height detection, one-touch pneumatic pin registration, front-to-back and back-to-front printing and 4 reversible vacuum zones. The end result is a versatile printer that helps you expand your job applications and grows with your business.
Vanguard Digital Printing Systems UV flatbed printers combine revolutionary technology, industry leading quality and outstanding speeds to satisfy the most demanding environment.
Entry Level 4'x8' Flatbed LED UV Printer
The VR5D-E is the most feature rich, entry level 4’ x 8’ true LED UV fixed table on the market. Utilizing industry-proven, Ricoh Gen5 print heads, you can expect both quality and speed, up to 12 boards an hour, at an affordable starting price.
Entry Level 4'x8' Flatbed LED UV Printer
The VR5D-E is the most feature rich, entry level 4’ x 8’ true LED UV fixed table on the market. Utilizing industry-proven, Ricoh Gen5 print heads, you can expect both quality and speed, up to 12 boards an hour, at an affordable starting price.
This printer offers field upgradability, with up to 10 print heads in 2 rows (2x5), for increased production. While pricing is entry level, the VR5D-E is an Industrial printer engineered for worry-free maintenance and ease of operation. High production workflow operating cost is at your fingertips!
The VR5D-E supports CMYK + W + V printing utilizing 7 pL dot sizes for vivid color output on substrates up to 4” thick. Other features include auto height detection, one-touch pneumatic pin registration, front-to-back and back-to-front printing and 4 reversible vacuum zones. The end result is a versatile printer that helps you expand your job applications and grows with your business.
Print Speeds:
- 2 head, CMYK Configuration: Up to 224 sq.ft.hr. | 7 boards
- 4 head, CMYKx2 Configuration: Up to 416 sq.ft.hr. | 13 boards
- 8 head, CMYKx2 Configuration: Up to 640 sq.ft.hr. | 20 boards
Standard Features:
- BandGUARD: Virtually eliminates chromatic banding, allowing you to print at faster speeds and better quality.
- CureGUARD: Precisely adjustable LED curing technology allows you to print to more substrates with greater control.
- StaticGUARD:Increase productivity and reduce labor by accurately printing from front to back and back to front.
- TimeGUARD: Virtually eliminate chromatic banding, allowing you to print at faster speeds and better quality.
- StaticGUARD: Inline static suppression system reduces static charges on acrylics and other positively charged substrates.
- PrintGUARD: Reduce time and waste with pinpoint accurate print resuming after a crash sensor has been reset.
- NoiseGUARD: Twin mufflers reduce the noise level of the powerful media vacuum pumps.
- AccuGUARD: The metal raster strip provides the most accurate dot placement in the industry.
- MediaGUARD: Measure media thickness with our auto-height detection system in just a matter of seconds.
- AlignGUARD: Air assisted pin registration provides precise media alignment with every print.
- PressureGUARD: Provides stability within the negative pressure system increasing the life cycle of critical components.
Specifications:
- Print Heads: Ricoh GEN5 piezo greyscale print heads.
- Resolution: Up to 1800 Apparent DPI
- Base Ink Configuration: YMCK
- Max Ink Configuration: YMCK-WW-KCMY X 2
- # of Print Head Slots: 10 (5 x 2 rows)
- Connectivity: 100 Base T Ethernet
- Software: Integrated Vanguard Print Controller
- Included PC: Windows 7 Professional 64-Bit OS with Touch-Screen control.
- Included RIP Software: Onyx Thrive Vanguard Edition
- Ink Curing System: Liquid Cooled LED
- Power Requirements: (2) AC 220V, Single Phase, 30A
- Operating Temperature: 68-86 F
- Operating Humidity: 40-80% (non-condensing)
- Max. Print Size: 49" x 99"
- Max. Print Thickness: 4" Thick
- Max Media Weight: 300 lbs.
- Machine Dimensions: 15' 4.25" W x 6' x 7" D x 4' 9"H
- Operating Dimensions: 20' x 10'
- Min. Door Clearance: 80" x 80"
- Crate Dimensions: 16' 5" W x 7' 5" D x 5' 8" H
- Weight | Crated Weight: 3527 lbs. | 4255 lbs.
- Warranty: 1-year covering printer parts, not deemed consumable, and labor.
CPU Boards carry a 2-year warranty. (print heads are not covered.)
- Installation & Operational Training: 4-5 days on-site
- 2 head, CMYK Configuration: Up to 224 sq.ft.hr. | 7 boards
- 4 head, CMYKx2 Configuration: Up to 416 sq.ft.hr. | 13 boards
- 8 head, CMYKx2 Configuration: Up to 640 sq.ft.hr. | 20 boards
Standard Features:
- BandGUARD: Virtually eliminates chromatic banding, allowing you to print at faster speeds and better quality.
- CureGUARD: Precisely adjustable LED curing technology allows you to print to more substrates with greater control.
- StaticGUARD:Increase productivity and reduce labor by accurately printing from front to back and back to front.
- TimeGUARD: Virtually eliminate chromatic banding, allowing you to print at faster speeds and better quality.
- StaticGUARD: Inline static suppression system reduces static charges on acrylics and other positively charged substrates.
- PrintGUARD: Reduce time and waste with pinpoint accurate print resuming after a crash sensor has been reset.
- NoiseGUARD: Twin mufflers reduce the noise level of the powerful media vacuum pumps.
- AccuGUARD: The metal raster strip provides the most accurate dot placement in the industry.
- MediaGUARD: Measure media thickness with our auto-height detection system in just a matter of seconds.
- AlignGUARD: Air assisted pin registration provides precise media alignment with every print.
- PressureGUARD: Provides stability within the negative pressure system increasing the life cycle of critical components.
Specifications:
- Print Heads: Ricoh GEN5 piezo greyscale print heads.
- Resolution: Up to 1800 Apparent DPI
- Base Ink Configuration: YMCK
- Max Ink Configuration: YMCK-WW-KCMY X 2
- # of Print Head Slots: 10 (5 x 2 rows)
- Connectivity: 100 Base T Ethernet
- Software: Integrated Vanguard Print Controller
- Included PC: Windows 7 Professional 64-Bit OS with Touch-Screen control.
- Included RIP Software: Onyx Thrive Vanguard Edition
- Ink Curing System: Liquid Cooled LED
- Power Requirements: (2) AC 220V, Single Phase, 30A
- Operating Temperature: 68-86 F
- Operating Humidity: 40-80% (non-condensing)
- Max. Print Size: 49" x 99"
- Max. Print Thickness: 4" Thick
- Max Media Weight: 300 lbs.
- Machine Dimensions: 15' 4.25" W x 6' x 7" D x 4' 9"H
- Operating Dimensions: 20' x 10'
- Min. Door Clearance: 80" x 80"
- Crate Dimensions: 16' 5" W x 7' 5" D x 5' 8" H
- Weight | Crated Weight: 3527 lbs. | 4255 lbs.
- Warranty: 1-year covering printer parts, not deemed consumable, and labor.
CPU Boards carry a 2-year warranty. (print heads are not covered.)
- Installation & Operational Training: 4-5 days on-site
