SUMMA F1612-3 | 63" x 47" FLATBED CUTTER

(0)No Reviews yet
SKU: SUM-F1612-31

The NEW! Summa F1612-3 Professional Flatbed Finishing System | 63” x 47”

SKU# SUM-F1612-3

The Summa F-Series offers a cutting product line based on 30 years of expertise building the world’s very best cutting plotters. These advanced engineered flatbed cutting tables are capable of cutting sheet and rigid materials as well as roll stock.


The multi-functional head can hold up to three tools at once. Changing tools can be done quick and easy. Automatic tool recognition, combined with digital and mechanical depth and/or pressure control, ensures precision cutting on a wide variety of materials.


The F-Series base unit comes standard equipped with the Drag Knife Module and Summa’s revolutionary optical camera marker recognition system for unbeatable contour cutting accuracy. Multiple material-handling options assure optimal efficiency, whether cutting printed, flexible or rigid substrates.


An ever-increasing arsenal of optional add-ons further expand the capabilities of the F-Series, allowing for a custom-tailored machine to fit your specific workflow perfectly.


ONE MACHINE- MANY FUNCTIONS

No other machine can match the versatility and adaptability of the Summa F-Series. Its heavy-duty construction, accuracy and multi-functional head allows you to install up to three tools simultaneously from a wide range of options, making countless applications possible. Since the tools and modules can be added at any time, upgrades are easy and cost-effective.


GOPRODUCE™ SOFTWARE - “To Perfectly Match Your F-Series Cutter.”

GoProduce™ is the first software module within Summa's GoSuite™ platform. It is developed to handle jobs easy and efficiently. The modern interface with improved navigation enables users to find and operate functions as quickly and intuitively as possible. Discover the new standard in Cutting Software:

  • Material database to automatically select the ideal tool and settings.
  • Flexible import of files for integrated print and cut workflows.
  • Integrated tutorials for direct support, also available on YouTube.
  • Registration of square or round marks for more flexibility.
  • One-time purchase, always up-to-date!

TECHNICAL SPECIFICATIONS

Model:                      Summa F1612-3

Dimensions:            92” x 84” x 43” (236 x 214 x 110cm)

Weight:                    1100lbs. (500kg)

Media Width:           Up to 65” (165cm)

Working Area:         63” x 47” (160 x 120cm)

Multi Panel:             1968” / 164’ (requires air driven media clamps and roll-feed / conveyor belt system)

Table Vacuum:        1.3 kW (50Hz) / 1.75 kW (60Hz)

Vacuum Zones:       Variable over width of machine

Warranty (USA):     2-Year Parts Limited Warranty. 1-Year On-Site Labor.  Toll free technical support.

POWER REQUIREMENTS

Standard:                  3x208V+N, 60Hz, max 30A. OR. 3x230V, 50Hz, max 20A

NOTE:                        No power cord ships with printer.

WHAT’S IN THE BOX: (Standard Accessories)

Summa F1612 Flatbed Cutter, Drag Knife Module, Conveyor System, Roll-Feed System, Safety Beam System, Pneumatic Pack, wireless controller w/ charger, standard 36˚ blade holder, 1 standard blade, 1 fiber-tip pen, hex screwdriver (4mm), hex screwdriver (2.5mm), USB cable (3 meter), USB extension cable (0.5 meter), media guide flanges (set of 2), CD w/ manuals and drivers

OPTIONAL ACCESSORIES: (Not included)

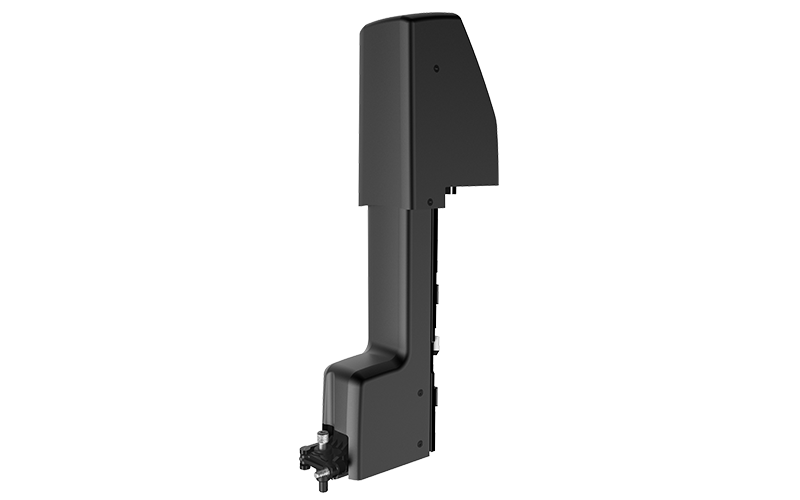

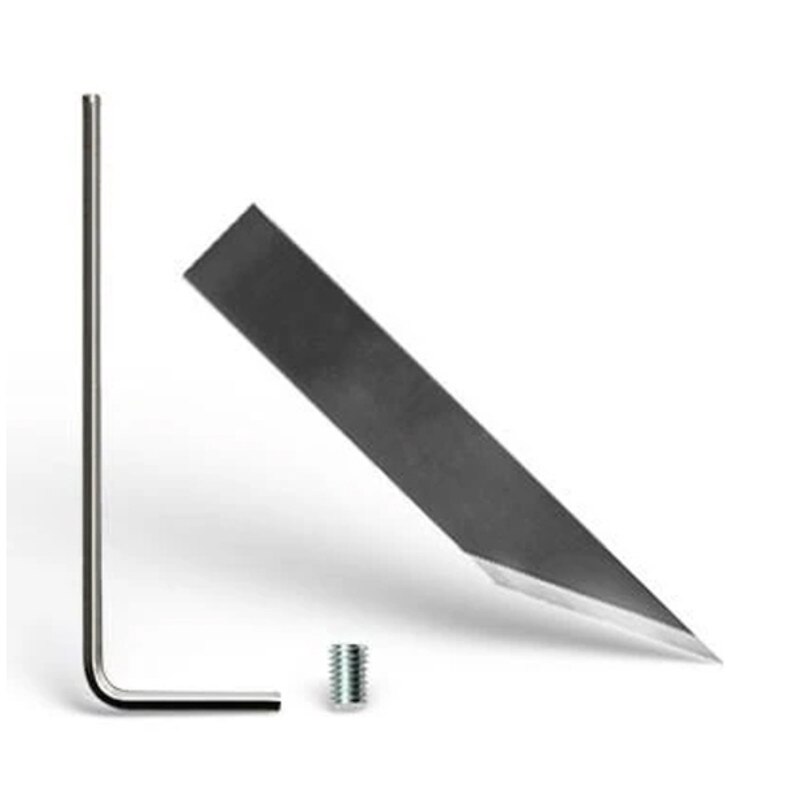

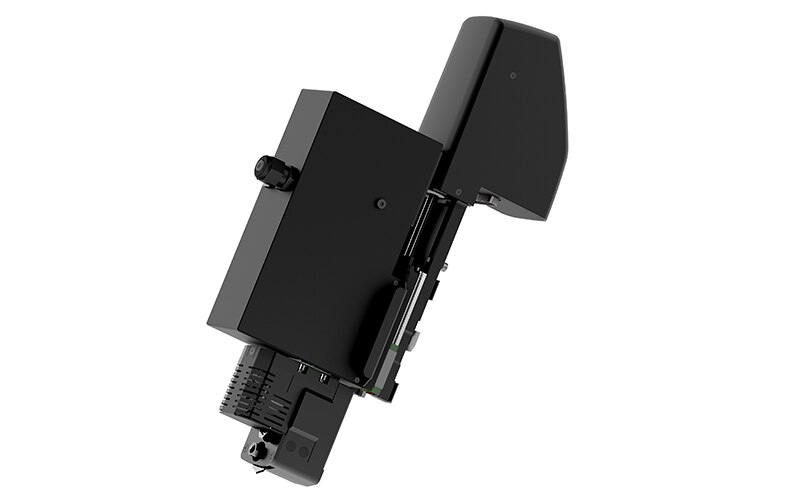

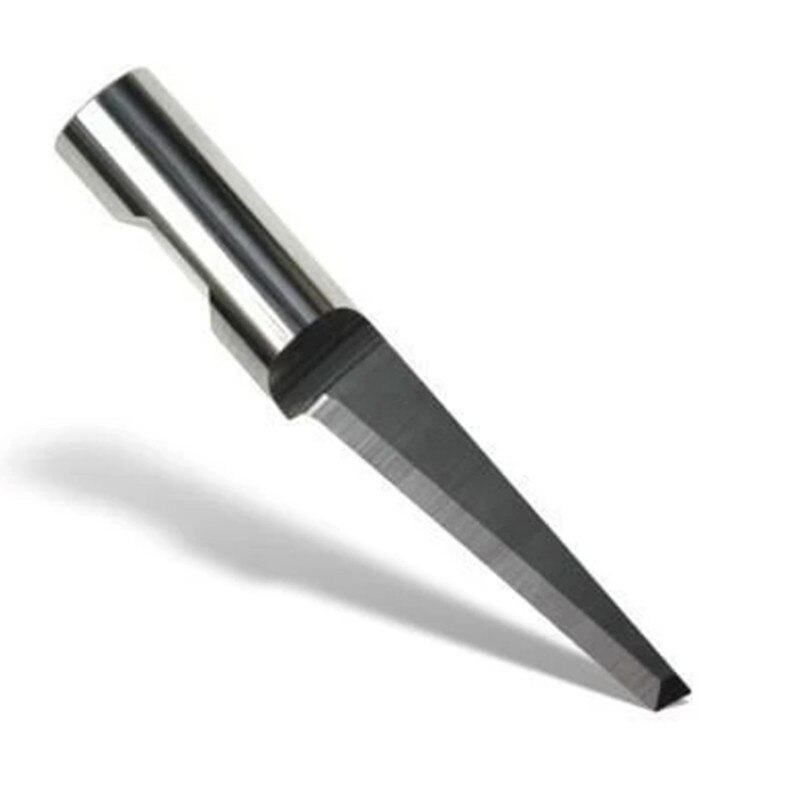

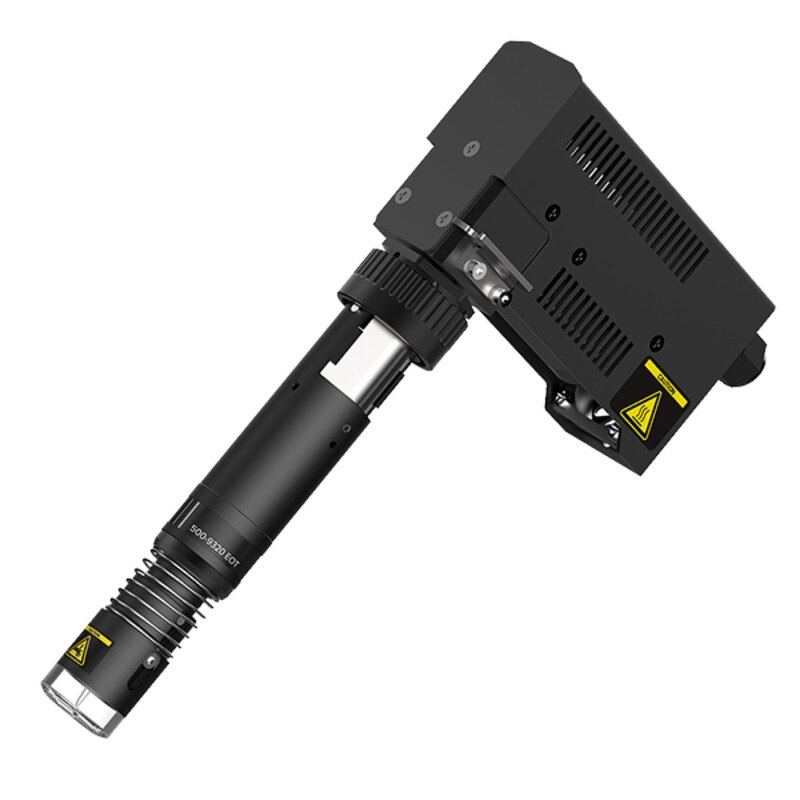

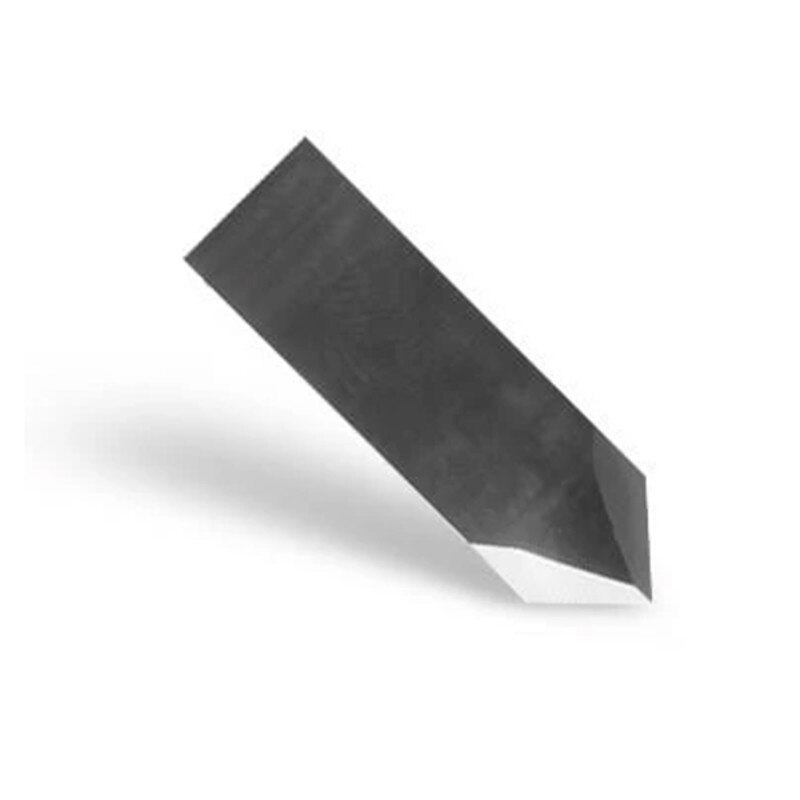

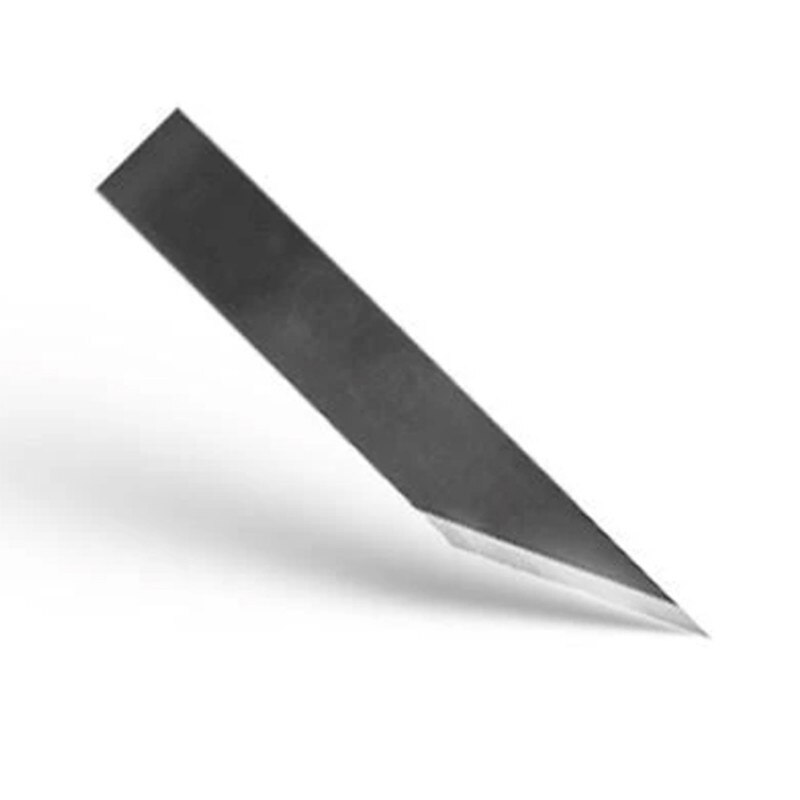

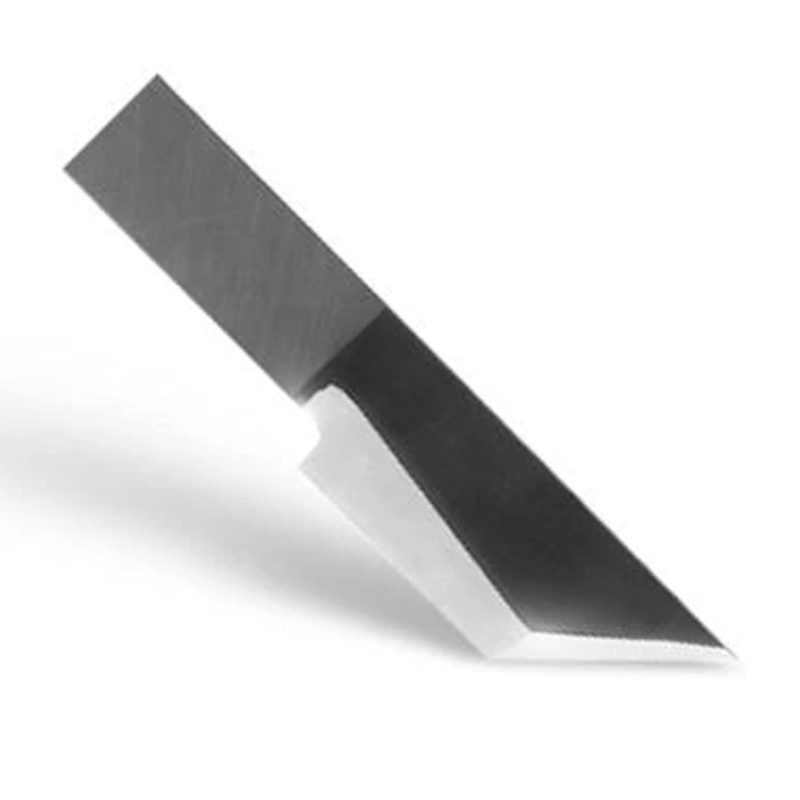

Tangential Knife Module, F Series Router System. Electronic Oscillating Tool, Pneumatic Oscillating Tool, Kiss Cutting Tool, Single Edge Cutout Tool, Double Edge Cutout Tool, Heavy Duty Cutout Tool, Creasing Tools, SummaFlex™, SummaFlex™ Pro production Software.
