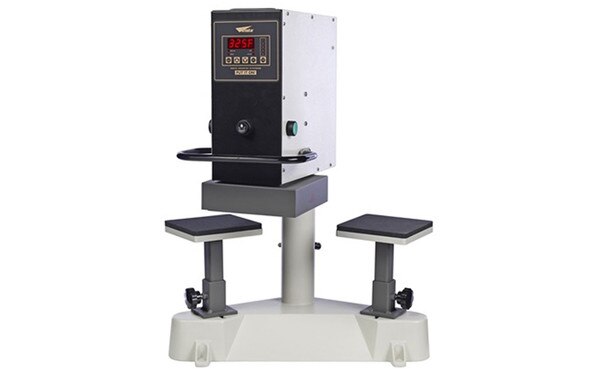

INSTA 907 | DUAL SHUTTLE STATION AUTO | 6" X 6"
PRODUCT NUMBER: INS-MS907S
- Space saving design
- 6” x 6” platen (15.2 cm x 15.2 cm)
- Worry free automatic open (no compressor needed!)
- One-piece ergonomic wrap-around handle assembly
- Made of cast aluminum for maximum durability.
- Dual 6”x6” lower platens with 6”x6” moveable upper platen.
- Fully adjustable pneumatic pressure control.
- Built in cycle counter displays up to 9999 applications.
- Integrated digital controller which features controls for time, temperature (Fahrenheit or Centigrade) & cycle counter.
- Protective heat shroud.
- Warranty – Lifetime warranty on the upper heating element, 1 year on parts & 90 days on labor.
- UL, CuL & CE approved. RoHS/WEE compliant.
- Made in USA
Dual Station Shuttle.
Insta answered the industry’s request for high speed label application with the Insta 907 Dual Station Shuttle Press. This pneumatic heat press machine is air-operated to prevent operator fatigue and is equipped with 2 independent lower platens, with an upper heated platen that swings between the two, for optimal efficiency. The Insta 907 dual station heat press is used for its high speed shuttle capability and its ability to produce consistent results under 24/7 use.
Performance You Can Depend On
The Insta 907 pneumatic heat press has been purposefully constructed to create and evenly distribute exceptional pressure throughout the entire platen. Its cast-in tubular heating element heats the metal from within, producing constant and long lasting heat. A successful heat transfer application requires perfect time, temperature, and pressure – 3 key components needed to work together in harmony. Having mastered all three, the Insta 907 performs perfectly every time.
Depth: 29” (73.66 cm)
Width: 31.25” (79.37 cm)
Height: 35” (88.9 cm)
Power: 120 volt – 1,000 Watts, 8.3 Amps / 230 volt – 920 Watts, 4.0 Amps
Shipping Weight: 95 lbs. (43.1 kilos)
Platen Size: 6”x6” standard (15.2 x 15.2 cm)
