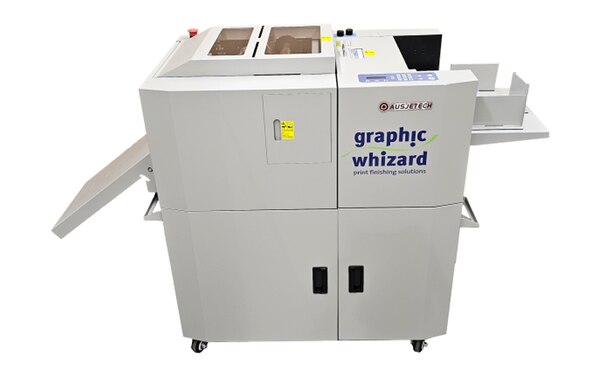

GW PT 33LSC LAMINATOR LAMINATE / SLIT / CUT
Designed to meet the demands of the digital short run printer the PT 33LSC not only cuts to bleed for a finished product, but also has a variable size encapsulation mode.
Choose your encapsulation width through the programming for 2-sided pouch lamination with a customizable border size. Remove the bottom roll with our convenient roll away feeder and perform true singled sided laminating without the need for a release liner. The easy to use external anti-curl lever ensures your single sided work will lay flat. The PT 33LSC boasts the highest film yield while in operation with only an 1/8” gap between sheets. Automatic setup, productive speeds and the efficient 2” vacuum pile feeder makes for a ‘set it and forget it’ laminating experience.
The PT 33LSC also has a foiling option, also known as foil sleeking. This embellishment method is the process of metallic foil adhering to an area layered by toner, producing unique beautiful finishes with ease.

SPECIFICATIONS:
Electrical: 110-130v, 50/60Hz, 15A
Floor Model: Yes, complete with caster wheels
Speed: Variable speeds up to 10 feet per minute
Min. Sheet Size: 7″ x 7″ (17.78 cm x 17.78 cm)
Max. Sheet Size: 13″ x 19.7″ (Up to 27″ dependent on programmed mode)
Paper Thickness: 100-350 gsm
Lamination Thickness: 1.5, 3 & 5 mil*
Lamination Width: 4.4″ – 12.9″ (11.176 cm – 32.766 cm)* custom widths available
Laminating Modes:
- Double-sided
- Single-sided with anti-curl device (no need for release film),
- Encapsulation
- Trim to bleed
Cutting Method: 2 automatic setup side slitters & 1 guillotine cutter assembly
Feeding Method: 2″ (5.08 cm) vacuum pile feeder
Dimensions: 64.9” x 24.4” x 43.3” (165cm x 62cm x 110cm)
Weight: 584lbs (265kg)
Warranty: 3 Years (excludes consumables)
