DTF STATION PHOENIX AIR 1620 | CURING OVEN
"One Hot Oven" for DTF Sheet Film up To 16" x 20"
The perfect curing oven for large DTF film sheets. Cures film in under 60 seconds! Built in air filter ensures a safer working environment. Built in digital timer and temperature for precise settings based on your application. Once time has elapsed, an acoustic signal sounds alerting you to remove the transfer film from oven!

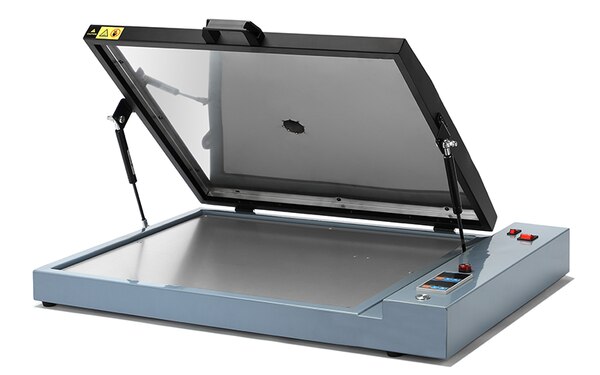

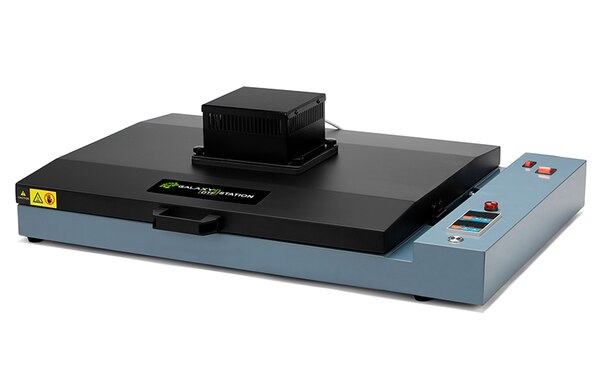

Phoenix Air 16x20 Curing Oven for DTF Sheet Printing
The Phoenix Air 16x20 Curing Oven is perfect for curing large film sizes, such as 13" x 19", 14" x 16", 16" x 20", and more! This oven comes with a purifier unit built-in to ensure the safety of your production space. It has a digital control unit that is easy to set and allows precise settings of temperature and time for consistent results. A fusing process is started at the touch of a button. After the set time has elapsed, an acoustic signal sounds alerting you to remove the transfer film.
Note:It is recommended to turn on the air purifier ONLY while the oven timer is running. Leaving the air purifier on for prolonged periods of time may increase the overall temperature of the oven beyond recommended curing temperature.
SPECIFICATIONS:
Voltage: 110V
Power: .88KW
Temp. Range: 0-150C. / 300F
Machine Size: 23" L x 12" W x 7" H
Packaging Size: 25" L x 16" W x 10" H
Product Weight: 22 lbs
Packaging Weight: 26 lbs.
FEATURES:
- Cure Transfers within a minute at 230~248°F
- Bottom Heating Element Rather than Top

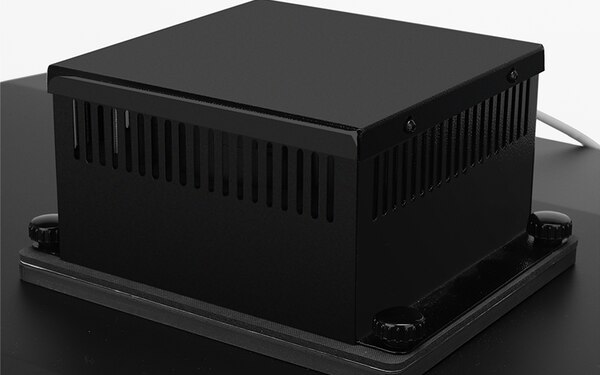

- Self Contained Purification system
- Replace Filter 1~3 months depending on usage
- Digital Control Unit: easy to set & allows precise settings of temperature and time for consistent results
Benefits:
- Easy to use
- Built-in purifier - save space & money
