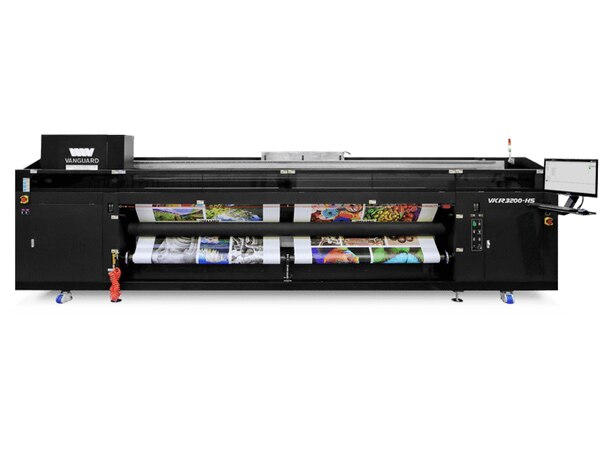

VKR3200-HS | 126" ROLL-2-ROLL HS LED UV PRITNTER
Roll to Roll UV-LED Printing
The robust VKR3200-HS 3.2 meter (126”) true roll-to-roll UV-LED is capable of producing speeds up to 3000 sq ft/hr utilizing Kyocera’s 4.25” KJ4A printhead and high-speed electromagnetic drive system.
Machine Dimensions & weight:
Crated Dimensions W X D X H: 20' 1" x 7' 1" x 6' 9"
Crated Weight: 4,892 lbs.
Uncrated Dimensions W X D X H: 19' 2" x 5' 6" x 5' 10"
Uncrated Weight: 4,629 lbs.
Operating Dimensions: 20' x 6'
Minimum Door Clearance: 66" wide
Print Speeds:
SINGLE ROW:
- Production Mode: Up to 1500 sq ft / h
- Quality Mode: Up to 600 sq ft / h
- High Quality Mode: Up to 400 sq ft / h
DUAL ROW:
- Production Mode: Up to 2,900 sq ft / h
- Quality Mode: Up to 1,150 sq ft / h
- High Quality Mode: Up to 800 sq ft / h
