VK300D-HVT | 5'X10' HS FB PRINTER HIGH VACUUM

SPECIFICATIONS:

  • PRINT HEAD: Kyocera KJ4A
  • RESOLUTION: Up to 1800dpi (apparent) as small as 4pl
  • MAX PRINT HEAD CONFIG: 10 ( 2 rows of 5 heads)
  • MAX. PRINT SIZE: 61.3" x 125.5"
  • MAX. MEDIA THICKNESS: 4"
  • MAX. MEDIA WEIGHT: 500lbs.
  • BASE INK CONFIG.: CMYK
  • INK OPTIONS: WHITE + VARNISH
  • INK CURING: Liquid-Cooled LED System


DIMENSIONS:

  • FOOTPRINT: 18"6" W x 8'5" D x 5' H
  • WEIGHT: 3,501lbs.
  • RECOMMENDED OPERATIONAL FLOOR SPACE: 22' W x 12'6" D
  • SHIPPING DIMENSIONS: 19'4" W x 7'5" D x 6'2" H
  • MIN. DOOR CLEARANCE: 84"


HIGH PRODUCTION FLATBED LED UV PRINTER

WITH UPGRADED HIGH SUCTION VACUUM TABLE

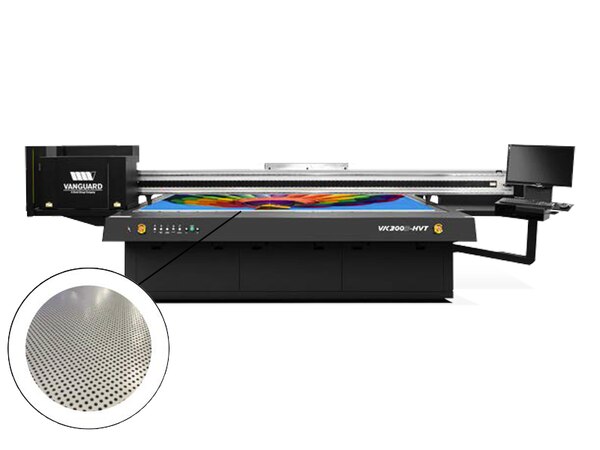

The VK300D-HVT is the big brother of table upgrades. Built with a custom milled aluminum tabletop made specifically for corrugated package printing, this flatbed will have your team producing at an incredible pace without the fear of curled substrates and head strikes. The vacuum table is made up of 127,000 1/8th inch holes and two 7.5 horsepower Spencer blower motors for maximum substrate stability while printing.


The VK300D-HVT is thoughtfully crafted for the corrugated box industry. A truly unique custom milled aluminum table top combined with 7.5 horsepower motor blowers allows this printer to hold down even the toughest material.


PRINT SPEEDS: (Single vs. Dual row of heads)

  • EXPRESS (2 PASS): Up to 2047 sq. ft/h | Up to 3412 sq. ft/h
  • PRODUCTION (4 PASS): Up to 1500 sq. ft/h | Up to 2421 sq. ft/h
  • QUALITY (8 PASS) : Up to 600 sq. ft/h | Up to 1054 sq. ft/h
  • HIGH QUALITY ( 10 PASS): Up to 400 sq. ft/h | Up to 516 sq. ft/h

(*above speeds using CMYK ink config.)

SKU: VG-VK300DHVT SERIES
Back

VK300D-HVT GROWS with your business

Built on the same award-winning VK300D-HS platform with all the robust functionality, the VK300D-HVT is the big brother of table upgrades. Built with a custom milled aluminum tabletop made specifically for corrugated package printing, this flatbed will have your team producing at an incredible pace.
