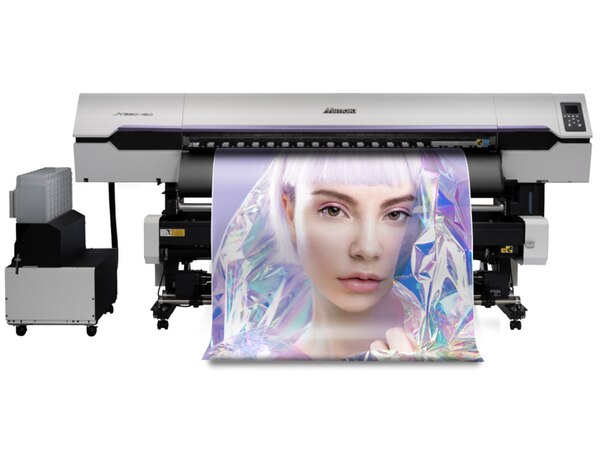

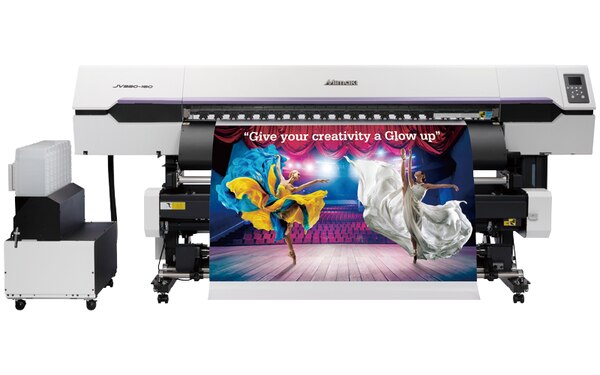

MIMAKI JV330-160 | Prepress Supply, Inc.

(0)No Reviews yet
SKU: MK-JV330-160

Commercial Printing Capabilities

Compatible with Mimaki Original Eco-Solvent inks this printer offers commercial level workflows and quality for high demand print businesses. Capable of producing a wide range of sign & graphic applications including durable banners, signs, posters, and more for internal and external use.

- Multiple media roll handling unit
- Integrated XY Slitter
- In machine lighting
- V-shaped cut function
- Mimaki Remote Access
- 2 staggered heads (6400 nozzles)

Specifications:

Printhead:                     Two on-demand piezo heads, staggered layout
Resolution:                    600 dpi, 800 dpi, 900 dpi, 1200 dpi
Print Speed (4C):          up to 1076.4 sq. ft. hr.
Max Print Area:             63.4" wide
Max Media Width:         63.8" wide
Max. Media Thick.:        up to 1mm (0.04")
Max. Roll Weight:          one roll 99.2 lbs. / 45 kg. / 3 rolls: total of 198.4 lbs. or less

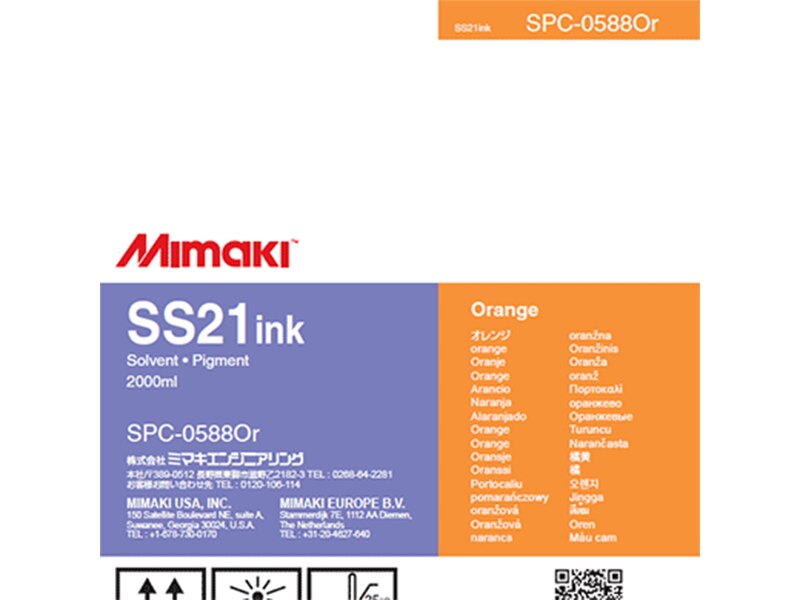

Ink Type:                        SS21 or BS4 | US & Canada | C, M, Y, K, Lc, Lm, Lk, Or, W (SS21) C, M, Y, K (BS4)
Ink Package Size:         2 liter Ink Pack
Interface:                       1000 Base-T Ethernet (recommended) / USB 2.0 Hi-speed
Power Supply:               AC100-120V | 15A | Single Phase
Op. Environment:          Temp: 20-30C / Humidity: 35-65% RH (non-condensing)

Dimensions:                  124.8" W x 47.8" D x 51.4" H
Weight:                          789.2 lbs. / 358 kg

Standard Warranty:       12mo. Total Care (parts& labor). 12mos. Parts Plus (parts only)
